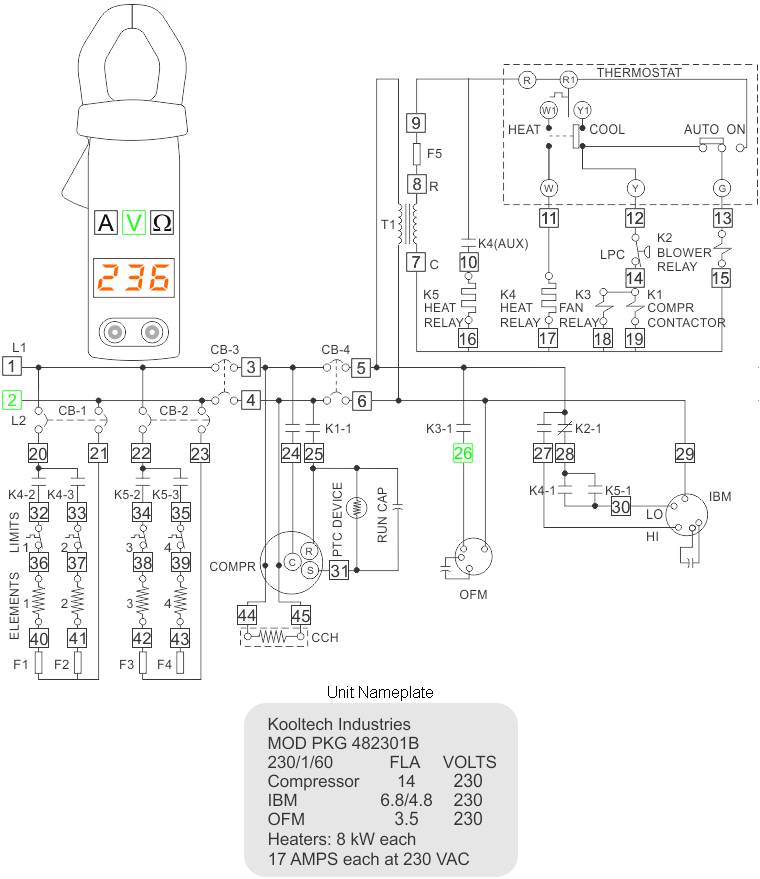

Roof Top Package Heat/Cool Unit - Problem 2

Screen size greater than 768 pixels required to use interactive board.


Submit Your Diagnosis
CB-1 tripped.
CB-2 tripped.
CB-3 tripped.
CB-4 tripped.
CCH open.
COMPR windings or O/L open.
COMPR seized.
Element 1 open.
Element 2 open.
Element 3 open.
Element 4 open.
F1 blown.
F2 blown.
F3 blown.
F4 blown.
F5 blown.
IBM seized.
IBM windings open.
K1 coil open.
K2 coil open.
K3 coil open.
K4-2 not closing.
K4-3 not closing.
K5-2 not closing.
K5-3 not closing.
Limit 1 open.
Limit 2 open.
Limit 3 open.
Limit 4 open.
LPC open.
No Faults.
No power.
OFM seized.
OFM windings open.
